CNC 6 Axis DB25 Interface Adapter
Loading...

CNC 6 Axis DB25 Interface Adapter

Κωδικός προϊόντος: 500015 Κατηγορία:

33.40 (Χωρίς ΦΠΑ)

3 σε απόθεμα (επιπλέον μπορεί να ζητηθεί κατόπιν παραγγελίας)

Guranteed Safe Checkout

Visa mastercard maestro card icon
Loading...

Περιγραφή

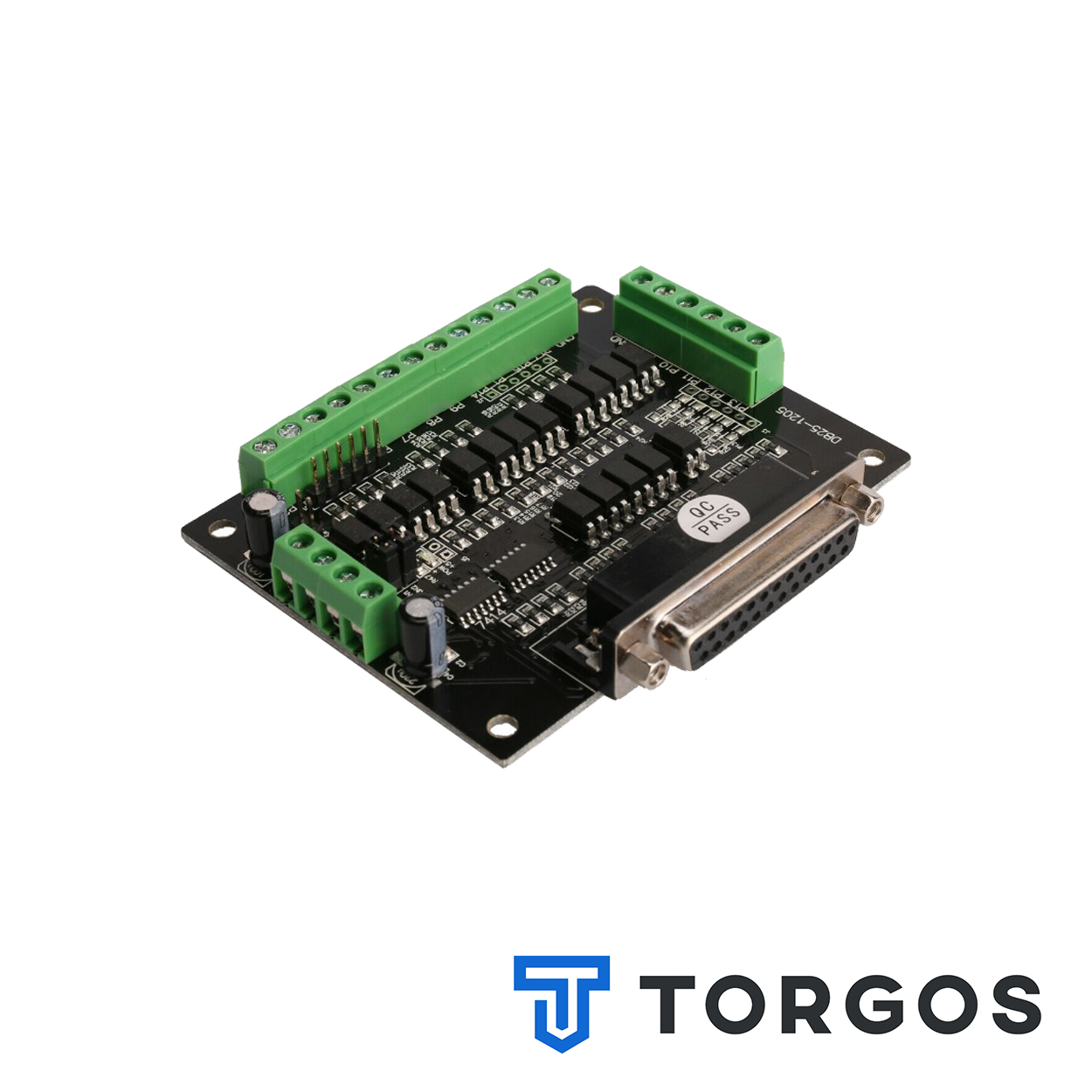

CNC 6 Axis DB25 Interface Adapter

To CNC 6 Axis DB25 Interface Adapter είναι ένας προσαρμογέας που δίνει τη δυνατότητα να λαμβάνουμε τα pins της παράλληλης σε terminal block connectors.

 Also suitable for other drivers running nema 17-23 motors can operate 6st drivers / motors at the same time. To this card you will need a Serial / Parallel Cable (Printer Cable) available as a separate product

It can connection 6 drivers and control 6 motors in the same time.
Built in DB25 male connector.

DB25 output pin: P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17

DB25 input pin: P10,P11,P12,P13,P15.

DB25 GND pin: P18-P25.

Power voltage is 5VDC

Support with MACH3 ect.software

Built in optical-coupler.





Για περισσότερες πληροφορίες σχετικά με το προϊόν αυτό συμπληρώστε τη φόρμα επικοινωνίας που θα βρείτε εδώ

Για να παρακολουθήσετε βίντεο με κατεργασίες στα οποία χρησιμοποιούνται μετατροπείς παρακαλούμε πατήστε εδώ

Επιπλέον πληροφορίες

Διαστάσεις 90 × 80 × 15 mm
