Περιγραφή

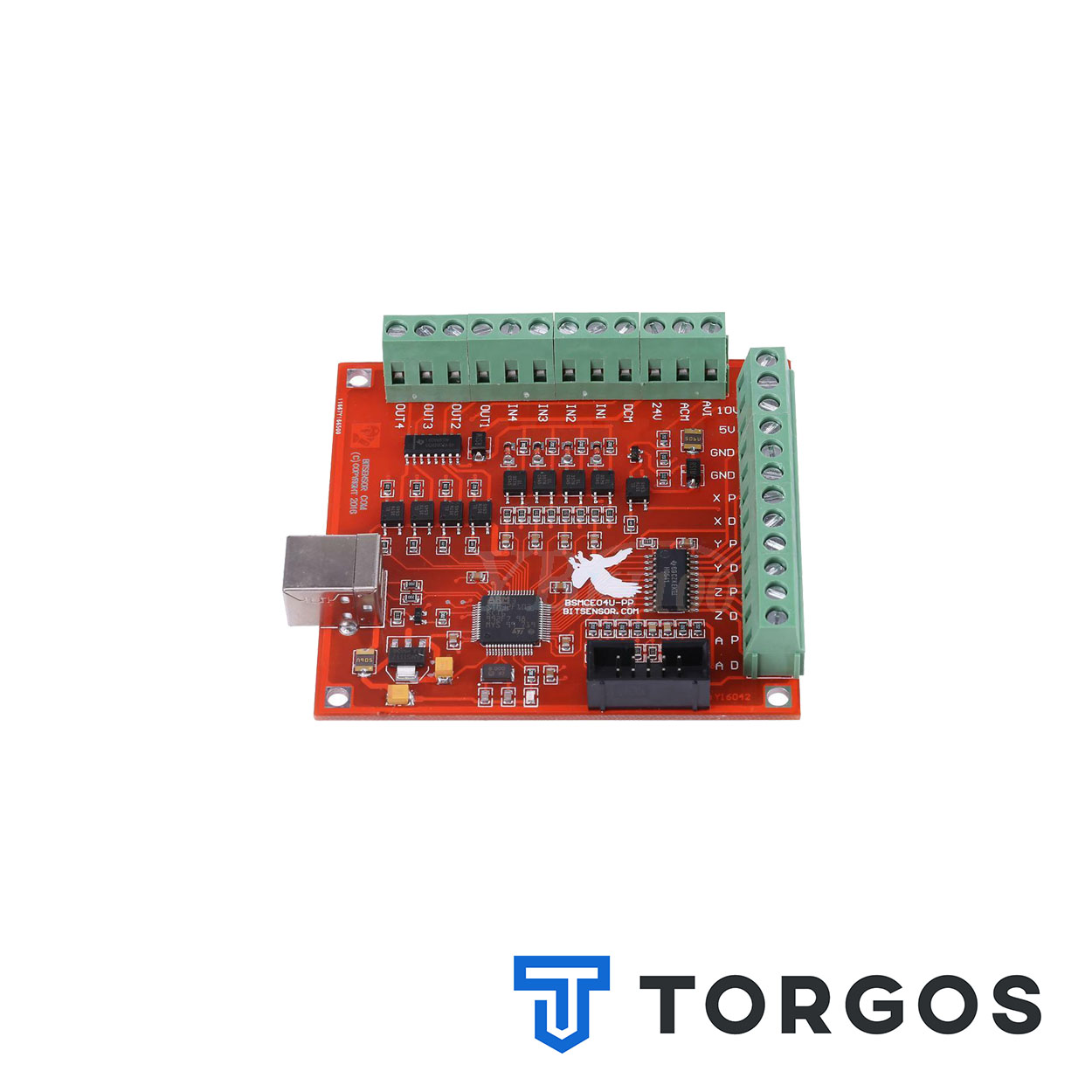

USB motion controller 100Khz Mach3
Η USB motion controller 100Khz Mach3 είναι μια interface board που μπορεί να ελέγξει αποτελεσματικά 4 διαφορετικούς άξονες σε ένα σύστημα.
- Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.
- Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor.
- Support automatic probe tool.
- Support emergency input.
- Support for limit switch.
- Support for connecting electronic hand wheel.
- Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
- Have 0-10V output port, you can use MACH3 software to control the spindle motor speed.
- 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device.
- 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device.
- Status LED, indicate connection status on the board.
Electric wiring
installation files.
